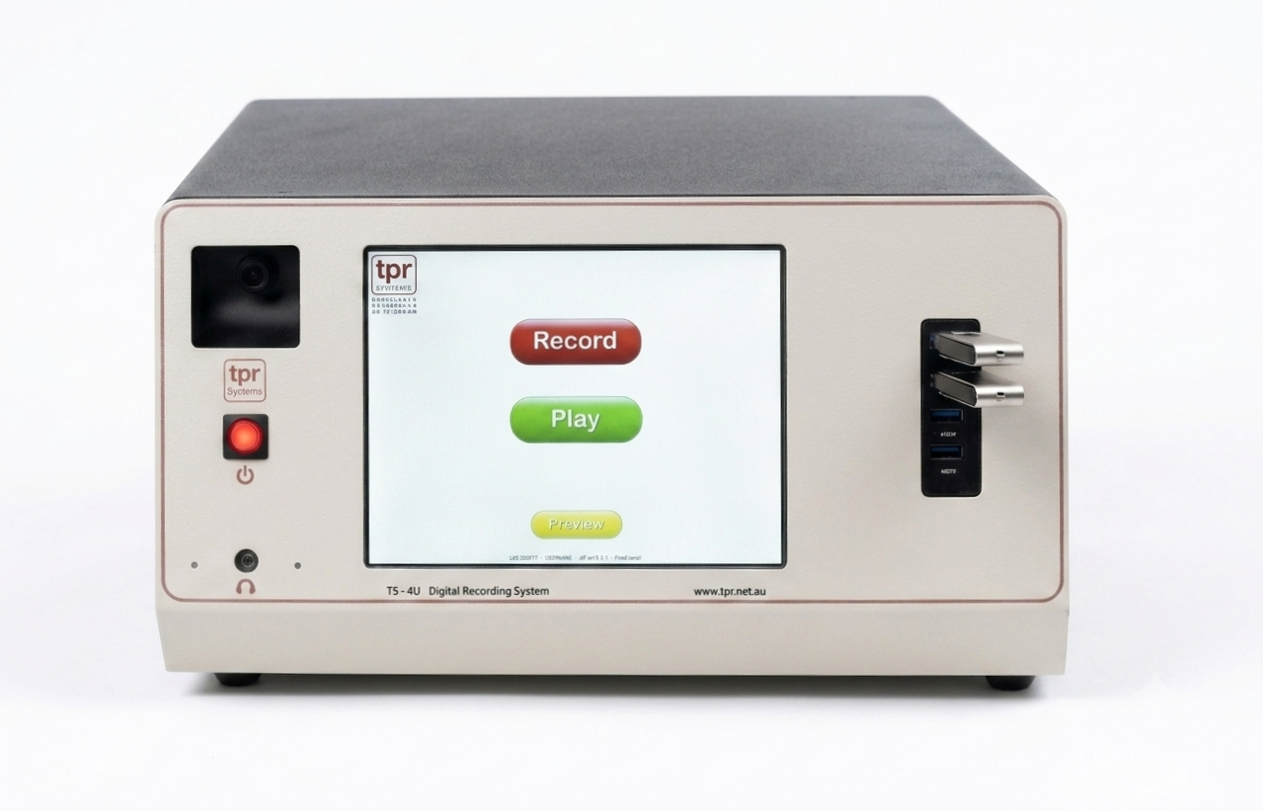

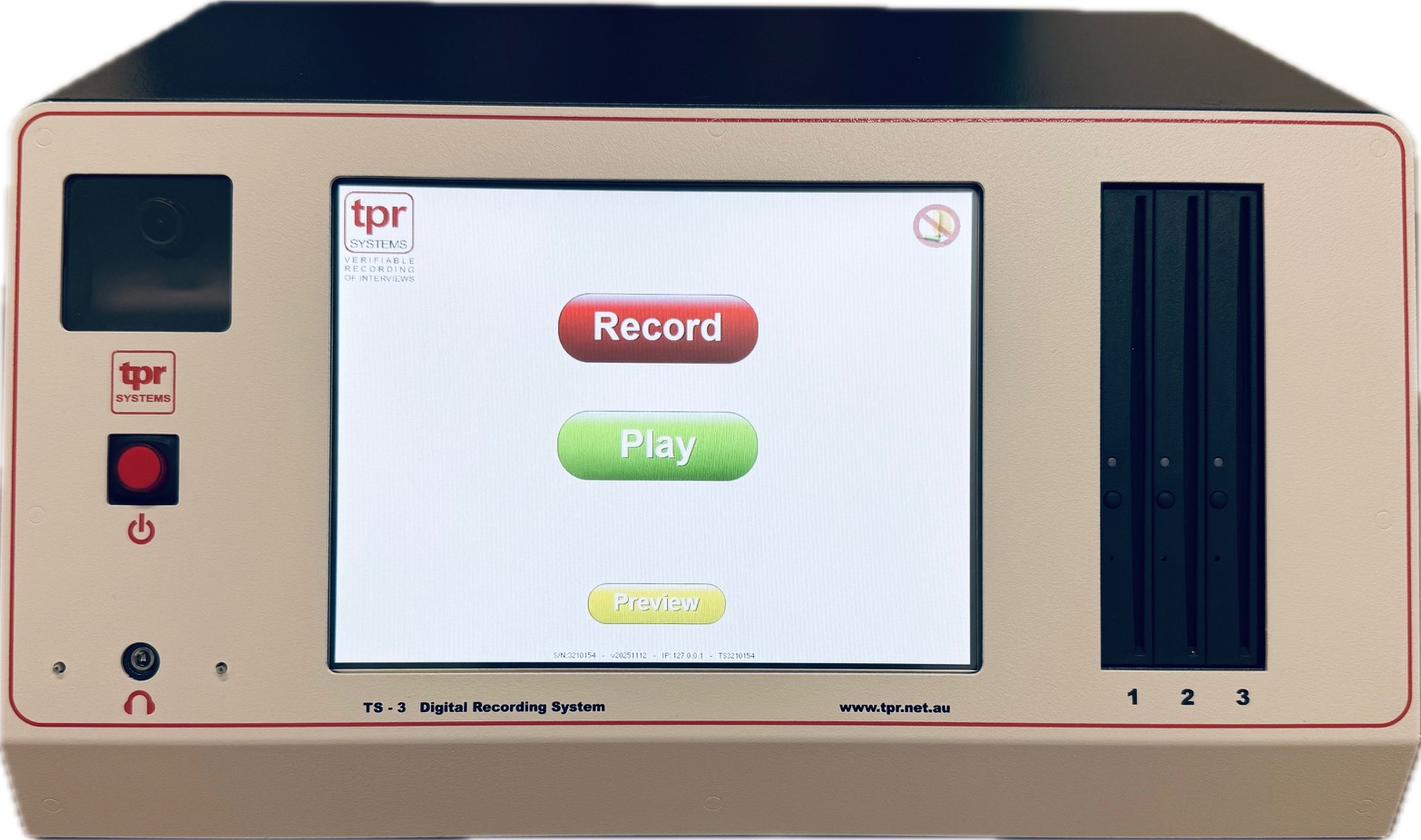

Interview Recorders - TS Series

Portable and desktop interview recording equipment that can be configured to suit your agency’s requirements.

TPR Systems ‘TS Series’ is a new generation of  portable and desktop interview recording equipment designed specifically for use by Police Departments, Law Enforcement agencies, Defense and private enterprise. Our recorders are compact, light weight, and easy to operate.

TS Series Features

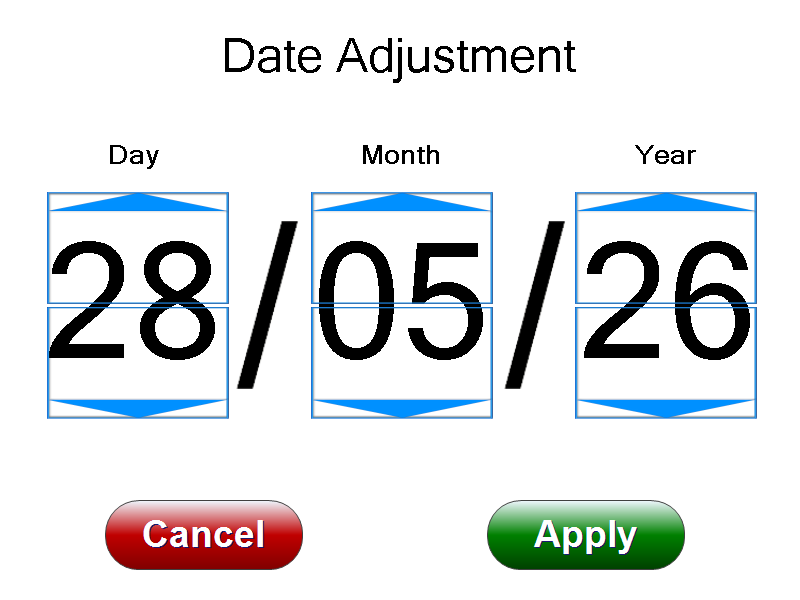

The TS series interview recording equipment is controlled through a simple touch screen. Recording an interview is as easy as pushing the red onscreen Record button. The display will indicate date and time, and the elapsed and remaining recording time for the interview.

The TS series continuously monitors the video and microphones to ensure trouble free recordings. Featuring a solid state hard drive system, recordings are protected and backed-up and as the interview progresses. The DVD’s are simultaneously recorded and checked in REAL TIME and are finalised and ready to remove within three minutes. All media is checked before the interview begins.

The TS Series recordings leave nothing to ambiguity. A configurable Picture-in-Picture generator gives a full screen view of the interviewee as well as up to two picture-in-picture shots to use as you wish, most often one will show the entire interview room through a wide-angle lens camera, and the other a close-up of the interviewer or interpreter.

With a recording time of 12 hours. The audio-video DVD’s are recorded in realtime in H264 (MPEG4 Part 10) format and the Audio CD’s are in MP3 format. Other formats available by request.

Recordings are digitally signed as they are recorded. This means that at any time in the future it is possible to prove absolutely that a particular recording is complete and unchanged.

The TS series boasts a TFT LCD touch screen on the front panel showing graphical instructions and live video for camera setup, confidence in operation and playback.

The recorder has analogue output connections so that it can share the audio from an interview with a remote location.

Multiple Recordings The TS series can be configured to record the interview onto a combination of three, four or five DVD’s or CD’s. Should your application require a non-standard combination of audio-only and audio-video recordings, or more or fewer recordings than standard, the TS series recorders can be changed to suit your application.

Video The TS series records video as 25 fps PAL. An NTSC version is also available with 30 fps rate.

Two microphones are used to give CD-quality stereo audio. Optional external microphones are available.

The TS series recorders are lightweight at 6.3Kg and fits into an optional waterproof Pelican Protective case that features a fold down carry handle, retractable extension handle, built-in wheels, automatic purge valve, double action latches and reinforced padlock protectors. Total weight approx 12.6Kg

Playback demonstration:

Recording demonstration:
